Description

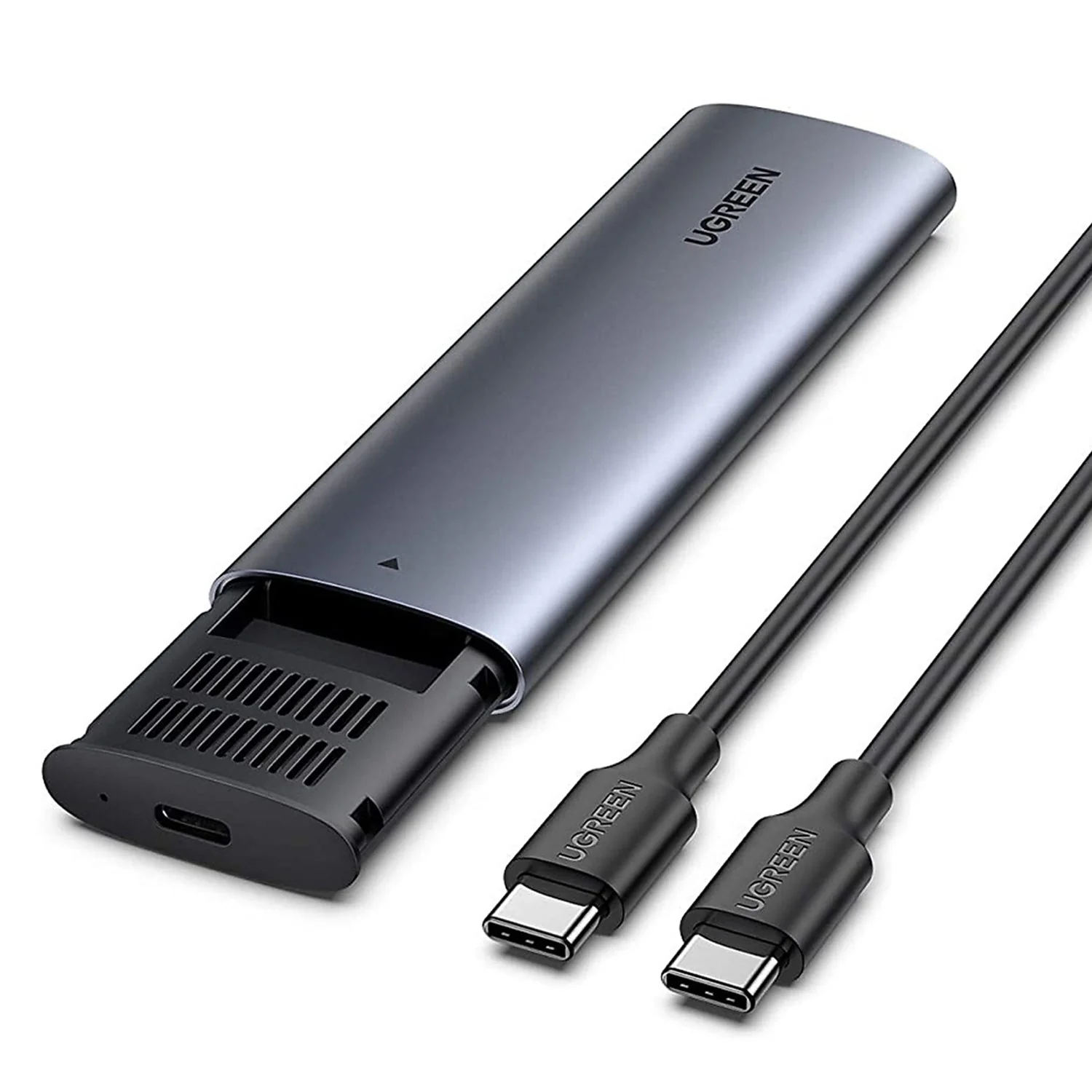

UGreen 10903 — external home for M.2 SATA NGFF drives
Turn a B-Key or M+B Key SATA NGFF SSD into a portable USB drive for laptops, PS4, Xbox, backups, recovery, upgrades, and cloning. Supports 2280, 2260, 2242, and 2230 sizes up to 2TB.
Not compatible with
NVMe PCIe M-Key and M&B-Key M.2 SSD, M.2 PCIe AHCI SSD, and mSATA SSD.
Speed and chipset
USB 3.1 Gen2 with M.2 SATA III and UASP delivers up to 5Gbps transfer rates; the ASM235 chipset supports speed and data safety. Performance is described as about 70% faster than traditional USB 3.1 devices. Includes USB-A to USB-C cable only.
Installation and use
Tool-free, plug-and-play setup with no driver required: slide the rear cover, insert the SSD in the B-Key or M&B-Key slot, secure with the two included rubber fasteners, and close the cover. No separate power supply; hot-swapping supported. Compact aluminum shell for portability.
Reliability
- Aluminum alloy housing for heat dissipation without a fan
- Short-circuit, over-current, and over-heat protection
- S.M.A.R.T. status monitoring
- LED working-status indicator
System and drive compatibility
OS: Windows 10/8/7/XP/Vista, Mac OS, Linux, Chrome OS.
Example SSDs: Samsung 860 EVO / 850 EVO M.2 SATA III, WD Green M.2 2280, WD Blue 3D NAND SATA, Crucial MX500 / MX300 M.2 2280, Kingston A400 / UV500 M.2 2280, ADATA SU800, SL700, YUCUN M.2 NGFF, DREVO D1, and similar SATA NGFF M.2 drives.
